| Description | UNIT | M.1 | M.2 | M.3 | M.4 | M.5 | M.6 | M.7 |
|---|---|---|---|---|---|---|---|---|
| Capacity | t | 0.5 | 2 | 1.5 | 2 | 3 | 5 | 10 |
| Standard lifting height | m | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3.5 |
| Test load | t | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 15 |
| Hmin Headroom | mm | 285 | 315 | 430 | 380 | 475 | 600 | 700 |
| Chainpull to lift full load | n | 25 | 33 | 34 | 35 | 39 | 41 | |
| No.of load chain fall lines | 1 | 1 | 1 | 1 | 2 | 2 | 4 | |
| Diameter of load chain | mm | 6.3 | 6.3 | 7.1 | 8 | 7.1 | 9.1 | 9.1 |
| Net weight | kg | 8.4 | 11 | 13.5 | 21 | 22 | 40 | 77 |
| Gross weight | kg | 9.4 | 12 | 14.5 | 22 | 23 | 41.5 | 85 |

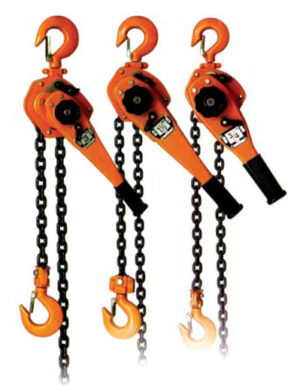

| Description | UNIT | ||||
|---|---|---|---|---|---|
| Capacity | t | 0.75 | 1.5 | 3 | 6 |
| Lifting height | m | 1.5 | 1.5 | 1.5 | 1.5 |
| Hmin headroom (hook to hook) Hmin | tmm | 310 | 300 | 485 | 600 |
| Full load hand force | N | 196 | 220 | 325 | 343 |
| No.of load chain fall lines | 1 | 1 | 1 | 2 | |
